Overview and Application

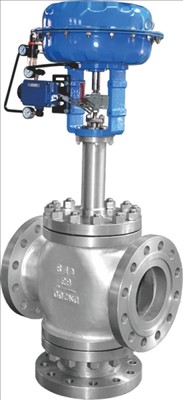

The straight-stroke three-way converging/diverting control valve adopts a double valve core and valve seat guide structure to adjust and control the gathering and separation of media in several flow paths. Two flow paths enter and one flow path exits is called three-way converging. On the contrary, One flow path in and two flow paths out are called split flow. The standard combined/split flow path is designed as an unbalanced double-seat internal structure. At the same time, balanced internal parts can be used to effectively reduce the unbalanced force caused by medium pressure difference. The size of the throttling surface is changed to control the adjustment or cut-off function of the evenly divided flow composed of the confluence or divergence of any flow path. Special valve cage internals such as noise reduction and anti-cavitation can also be used according to the working conditions.
main material
Valve body: carbon steel, alloy steel, stainless steel
Valve trim: stainless steel material, valve core and valve seat can be surfacing STL and ion nitrided.
Technical Parameters
Nominal diameter: DN25～DN300
Nominal pressure: PN16/PN40; CL150(PN20), CL300(PN50)
Operating temperature: -17℃-+425℃
Traffic characteristics: Linear
Adjustable ratio: 30:1, 50:1, 100:1
◆Leakage level: ANS1B16.104: IV, V, VII
◆Valve body material: WCB/WCC/LCB/LCC:WC6/WC9;CF8/
CF8M:4A/5A, etc.
◆Valve trim material: 630/316/316+STL/316 nitriding/316+Ni60
316+WC, etc.
Packing material: PTFE+graphite V-shaped packing, flexible graphite ring packing, graphite
+PTFE braided filler, etc.
Features
Precise flow control or rapid flow control of the medium during the medium diversion/merging process
cut off.
