Overview and Application

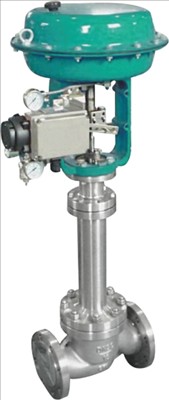

The sleeve bellows control valve adopts sleeve guide and pressure balanced valve core, which has good sealing performance, large allowable pressure difference, good stability, compact structure, and bellows-sealed upper valve cover and bellows components. Make sure there is no media leakage. It is widely used in toxic, corrosive and other industries that require tight sealing in petroleum, chemical, metallurgy, pharmaceutical and electric power industries.
main material
Valve body: carbon steel, stainless steel, alloy steel
Valve trim: stainless steel material, valve core, valve seat can be surfacing STL, ion nitriding treatment
Technical Parameters
Nominal diameter: DN20~DN400 (3/4"~16")
Pressure grade: PN16-PN63 (class 150-600)
Flow characteristics: equal percentage, linear, quick opening
Leakage level: ASMEB16.104V (metal valve seat)
ASME B16.104VI (soft seat)
Valve cover form: bellows type: -60℃～530℃
Connection method: flange type, welding type
executive agency
Pneumatic diaphragm actuators, pneumatic movable actuators, electric actuators, electro-hydraulic actuators.
