1. Overview and Application

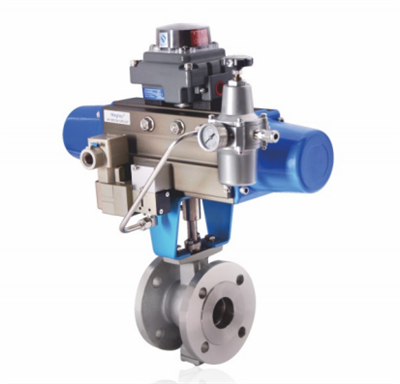

Pneumatic V-shaped ball valve, single seat design. It has strong circulation capacity, large shear force and self-cleaning ability, and is especially suitable for media containing fibers and fine particles, such as fibers, sludge, slurry, etc. Widely used in oil refining, chemical industry, papermaking, petrochemical, and other industries.
2. Main materials
Valve body: carbon steel, stainless steel, alloy steel, etc.
Valve core: stainless steel
Valve seat: soft seal: PTFE, R-PTFE, PPL, PEEK, etc.
Metal seal spraying: STL WC Ni60 Cr3C2, etc.
3. Technical parameters
Nominal diameter: DN25-DN500
Pressure level: PN16-PN64
Working temperature: -40℃—500℃
Connection method: flange, thread
Sealing form: soft seal, metal seal
