1、 Product introduction

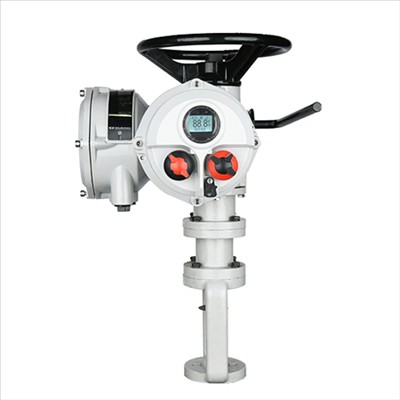

Thanks to all the advantages of TIQ actuator, TIQ + ve straight stroke actuator
has a linear output transmission system, and the output of thrust regulation can reach 100kN.
Tiq18 + ve (AC380V): * large output 20000n, stroke range 10mm-100mm
Tiq18 + ve (AC220V): * large output 10000n, stroke range 10mm-100mm
Tiq25 + ve (AC380V): * large output 100000n, stroke range 40mm-100mm
Tiq25 + ve (AC220V): * high output 50000n, stroke range 40mm-100mm
Modbus, PROFIBUS DP, Hart, mewtocol and other bus communication protocols
can be selected with high precision, which is suitable for all kinds of occasions that need to adjust the flow
