Detailed introduction

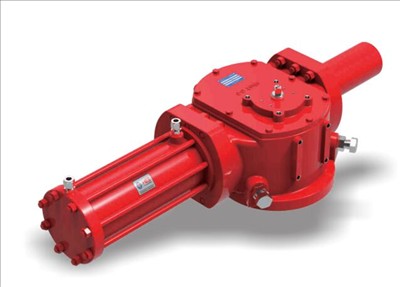

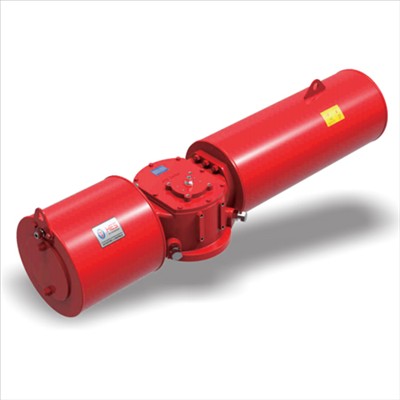

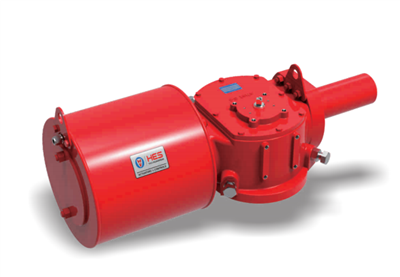

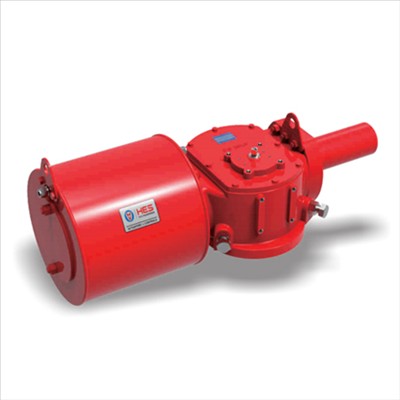

Model: Double-acting HG-P-DA type
Specifications: HG0, HG1, HG2, HG3, HG4, HG5, HG7, HG8,
Rotation angle: 90°, customized by customer
Structure: shift fork transmission
Interface: Universal, customized
Cylinder material: steel or gray cast iron
End cover material: steel or gray cast iron
Sealing material: nitrile rubber (standard), silicone rubber (low temperature), fluorine rubber (high temperature), customized
Maximum air source pressure: 10bar
Mode of action: single action
Control mode: two-position cut-off (switch type), adjustable type
Accessory selection: solenoid valve, positioner, limit switch, air source treatment triplet, manual operator, others
